Push-to-Talk over Cellular Handheld Smart Device

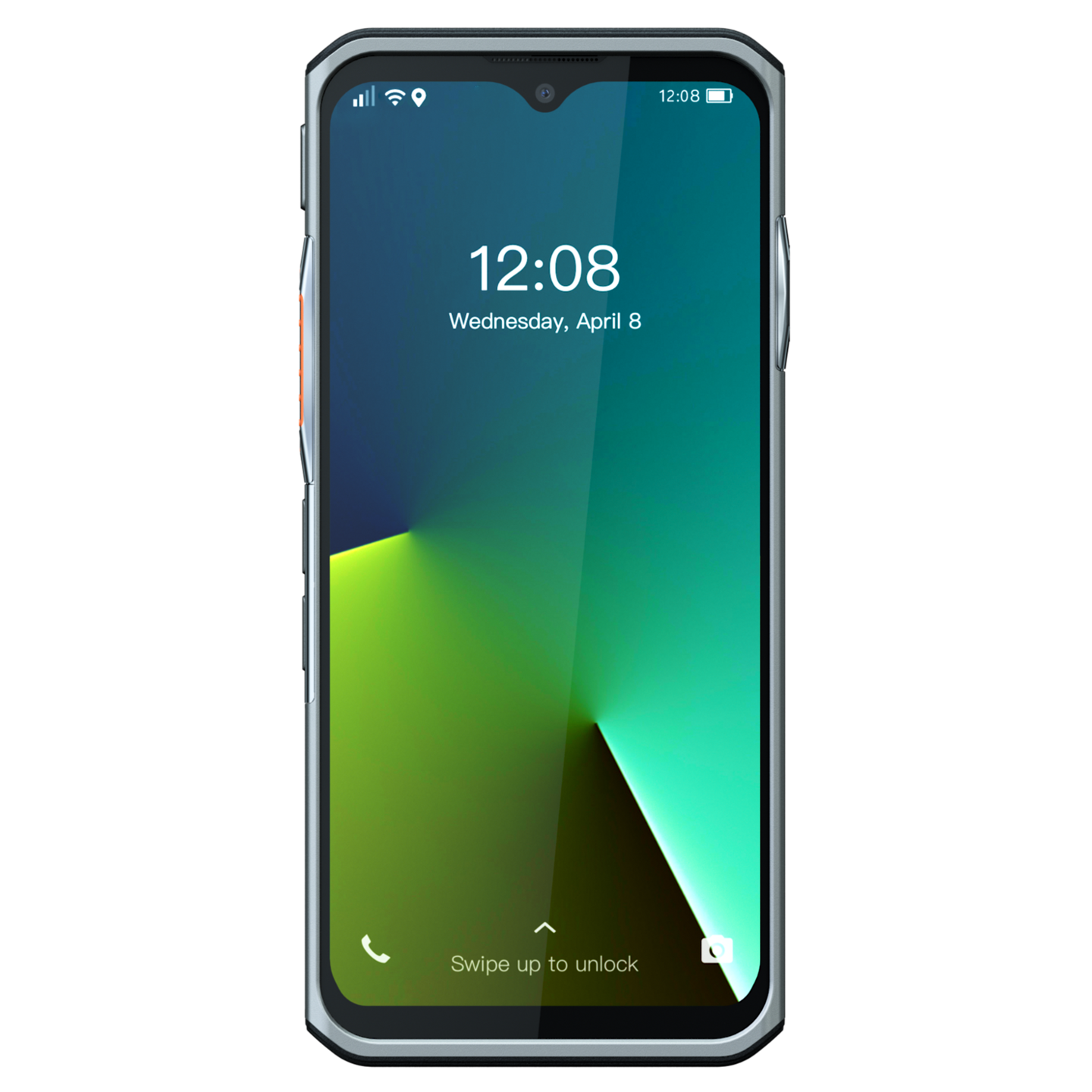

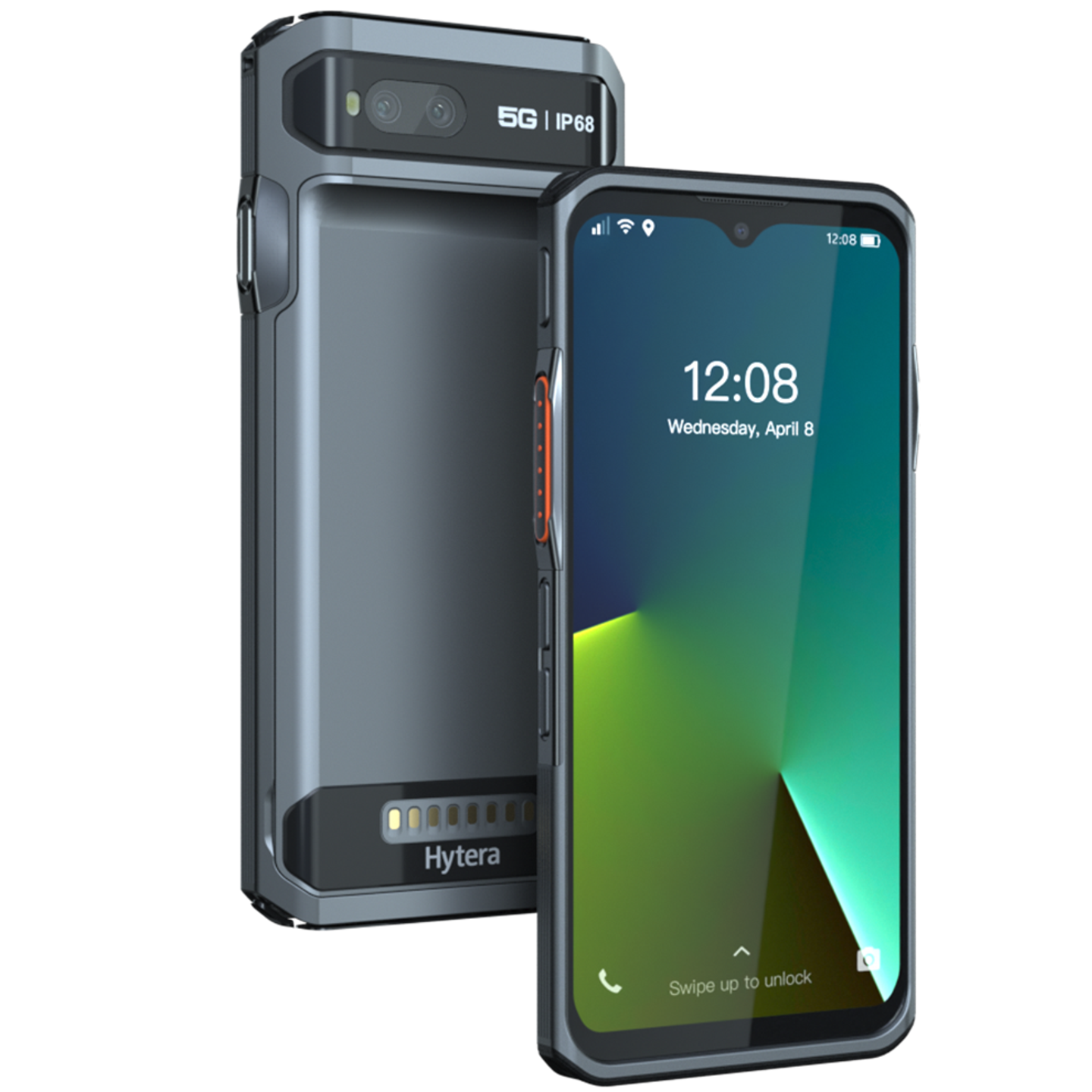

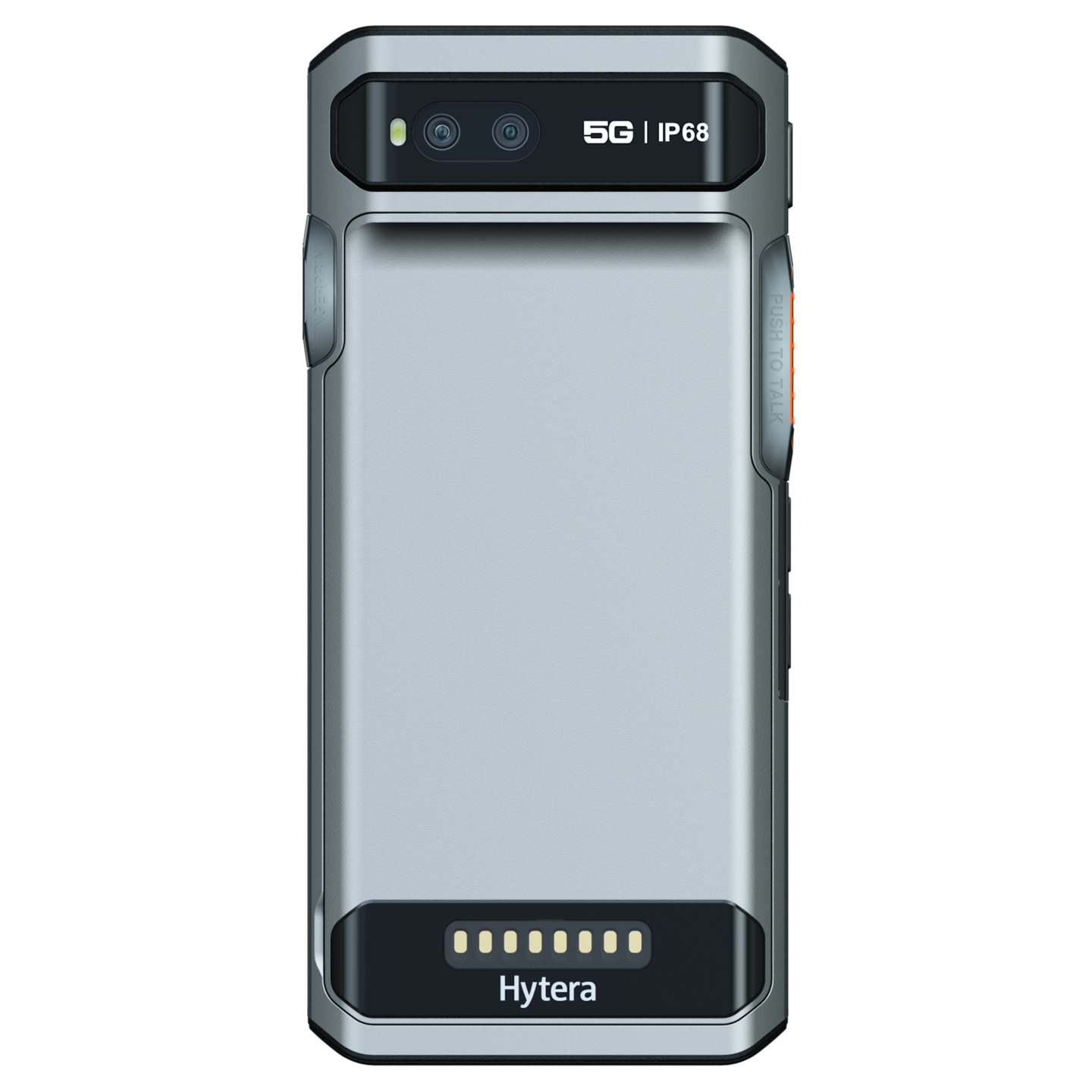

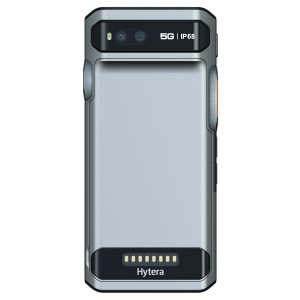

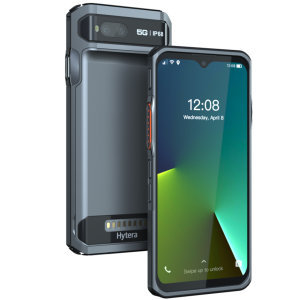

The Hytera PNC560 is a Push-to-Talk over Cellular (PoC) radio and handheld smart device designed for nationwide business operations and remote workforce communications. The PNC560 combines the advantages of a compact mobile computer and a data collection terminal with the ruggedness, enhanced audio quality, and instant Push-to-Talk group communications of a professional PoC device. It features a built-in infrared scanner for warehouse, inventory management, and medical applications.
- Powerful Handheld Smart Device and Push-to-Talk Radio
- Built-In Infrared Barcode Scanner
- Industry-leading Voice Quality with Digital Noise Suppression
- Supports Instant Group Voice and Video Calling and Texting
- Rugged and Purpose Built for Professional Communications
- Seamless Switching between Cellular and Wi-Fi Networks
- Runs Android Business Apps
The PNC560 is supported on the Hytera
HALO Nationwide PoC subscription-based service, on the
Hytera HALO OnSite customer-owned PoC system, and
Hytera HALO Connect unified PoC and LMR platform. The PNC560 is supported by
Hytera HALO Dispatch, a powerful web-based group communication, and location tracking application.
Halo OnSite+ - For single-site or multi-site use, HALO OnSite connects to specific Wi-Fi systems so you can limit service to only where you want it.
Halo Connect - HALO Connect allows for LMR, DMR, and PoC networks to be called, dispatched, and tracked all from a single web application.
Halo Dispatch - All Hytera PoC devices support HALO dispatch, a web-based communication and location dispatching application.
Hytera HALO Nationwide offers a state-of-the-art Push-to-Talk Over Cellular (PoC) radio network that utilizes America's reliable cellular infrastructure. Say goodbye to coverage gaps and enjoy seamless communication across the entire nation.
STANDARD PACKAGE INCLUDES:
- Li-Ion Polymer Battery (BP4901)
- SIM Card
- Power Adapter (PS3006)
- USB Charging Cable (PC158)
- Tempered Glass Screen Protector (POA200)
- 2 Year Warranty
National wide-area communication with mobile LTE cellular connectivity
Built-in 2.4GHz and 5GHz Wi-Fi supports in-building communications with seamless switching to LTE networks when outside the Wi-Fi range
A dedicated Push-to-Talk button initiates instant voice or video calls to groups or individuals
Qualcomm 8-core platform provides stable and smooth multi-task operations
Supports user-initiated video calls and sharing high-resolution images with the Hytera HALO Dispatch application and other PoC devices
Send, receive, and view text messages between the dispatcher and other Hytera PoC devices, also record and send audio messages
The PNC560 features biometric fingerprint and facial recognition with fast unlock for secure access, and Android security features protect against unauthorized access and virus/hacker attacks and provides safebox secure file storage

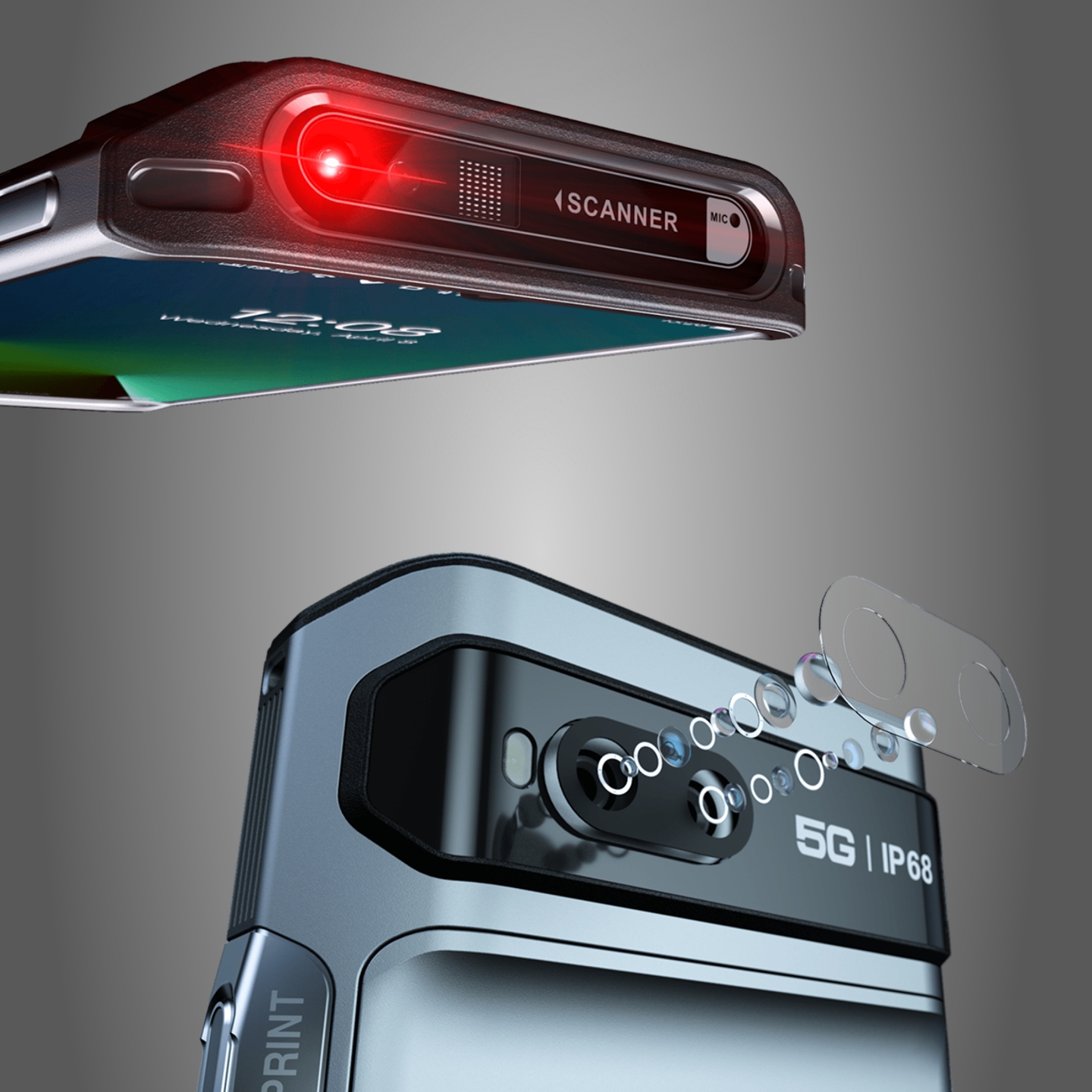

Built-in infrared scanner head reads 1D and 2D barcodes and QR codes in milliseconds from up to two feet away, and supports barcode scanning and logistics applications. Optional Android Application Package (APK) available for integrating the scanner functionality with other applications
Three separate high resolution cameras, including a screen-facing, wide-angle camera, and two rear-facing cameras with telephoto and wide-angle lenses
Powerful 5,040mAh Lithium-Ion Polymer battery delivers up to 15 hours of continuous operation and supports quick charging by desktop charger and USB
Dual SIM cards provide flexibility for two network data plans
Compliant with MIL-STD-810-G for shock and vibration, and IP68 rated to be impervious to dust and fine powders, and can be submerged in 5 feet of water for 30 minutes
Supports the latest Android OS business apps for, inventory management, security, and unified operations and communications

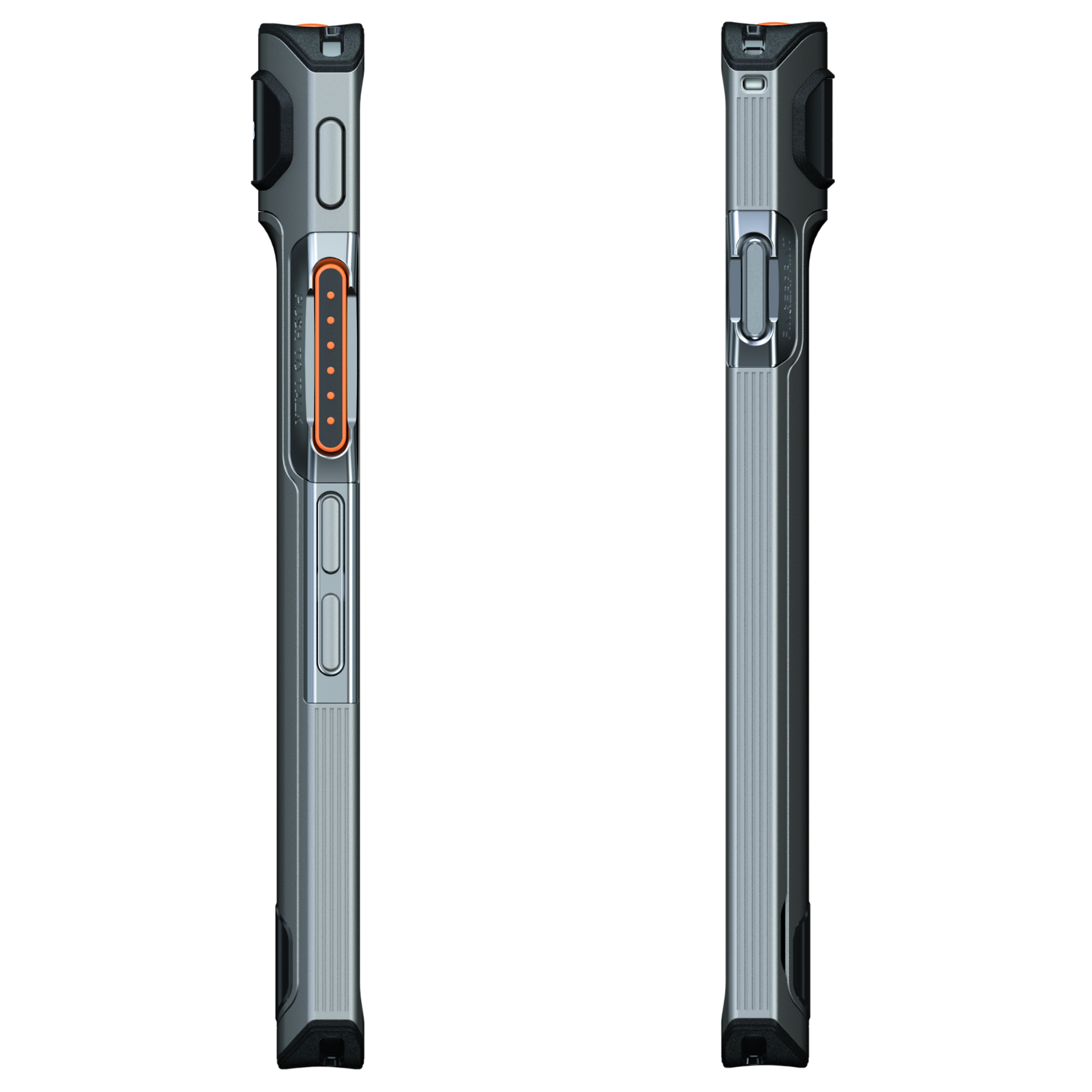

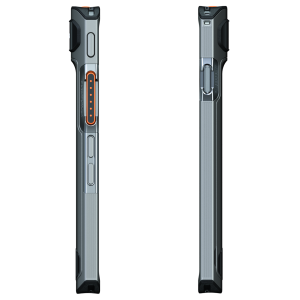

Ergonomic design with easy-access buttons
Large screen enables multiple simultaneous operations, supports wet hand and glove touch interaction, and provides a clear display in bright sunlight
GPS enables real-time tracking and positioning for the Hytera HALO Dispatch application
The PNC560 features an integrated infrared scanner head that reads 1D and 2D barcodes and QR codes in milliseconds from up to two feet away for all-in-one ease of use in warehouse, delivery, inventory, and medical applications. The Android operating system supports a variety of scanner apps.
| 5G |
N1/N2/N3/N5/N20/N28/N41/N66/N71/N78 |
| LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 |
| LTE-TDD |
B38/B39/B40/B41/B2/B43/B48 |
| WCDMA |
B2/B4/B5/B8 |
| GSM |
850/900/1800/1900 |
| Wi-Fi |
2.4GHz/5GHz 802.11b/g/n/ac |
| Bluetooth |
BT 5.0 |
| Positioning System |
GPS/Galileo/BDS/A-GPS |
| Audio Formats |
MP3, eAAC, G.711, Windows Media Audio 9/10/Pro, AMR-NB, AMR-WB |
| Image Formats |
JPG, GIF, BMP, PNG, WebP |
| Video Formats |
1080p@30fps, MPEG-4, 3GP, P0, H.264, VP9, BP/MP/HP/ASP, DivX 4x/5x/6x |
Transceiver
| Audio Power Output |
3W rated |
| Microphone |
Microphone with AI-based noise suppression |
Environmental
| Operating Temperature |
-4°F to +140°F (-20°C to +60°C) |
| Storage Temperature |
-22°F to +158°F (-30°C to +70°C) |
| ESD |
IEC 61000-4-2 (Level 4) 8kV Contact, 12kV Air |
| Dust and Water Ingress |
IP68 Standard, Full submersion at 5 feet for 30 minutes |
| Humidity |
Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration |
Per MIL-STD-810 C/D/E/F/G Standard Drop Proof to 5 Feet |
| 3GPP |
MCX Release 15, Standard: 400,000 presses |
Certications
| Environmental |
RoHS/REACH |
| Certication |
FCC, CE, IC, GMS |
General
| Battery |
5,040mAh (Li-Ion Polymer) |
| Battery Life |
Up to 15 hours continuous use |
| Weight |
9.5oz (270g) |
| Dimensions (H x W x D) |
6 9/16” x 3 1/32” x 1/2” (167 x 77 x 13mm) |
| Operating System |
Android 12 |
| Memory |
4GB RAM + 32GB ROM |
| Card Slots |
2X Nano SIM, or 1X Nano SIM and 1X MicroSD 128Gb |
| Display |
6.3” Gorilla Glass, FHD+, 2340x1080, Supports Multi-Touch, Wet, and Glove Touch |
| Camera |
8MP Front Facing, 8MP Rear Facing Telephoto, and 48MP (via software algorithm) Wide Angle Rear Facing |
| Flash / Flashlight |
Supported |
| Ports |
USB Type C Charger Interface, 3.5mm Audio Interface |
| Physical Interface Buttons |
1x Push-to-Talk, 2x Volume (+/-), 1x Programmable Button for Scanning or other functions, 1x Power with Fingerprint Recognition |
| Sensors |
Fingerprint, Acceleration, Gravity, Gyroscope, Geomagnetic, Infrared, Light |
Hytera PNC550 requires airtime service on the LTE system
