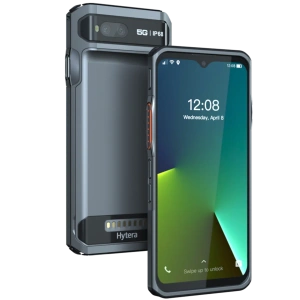

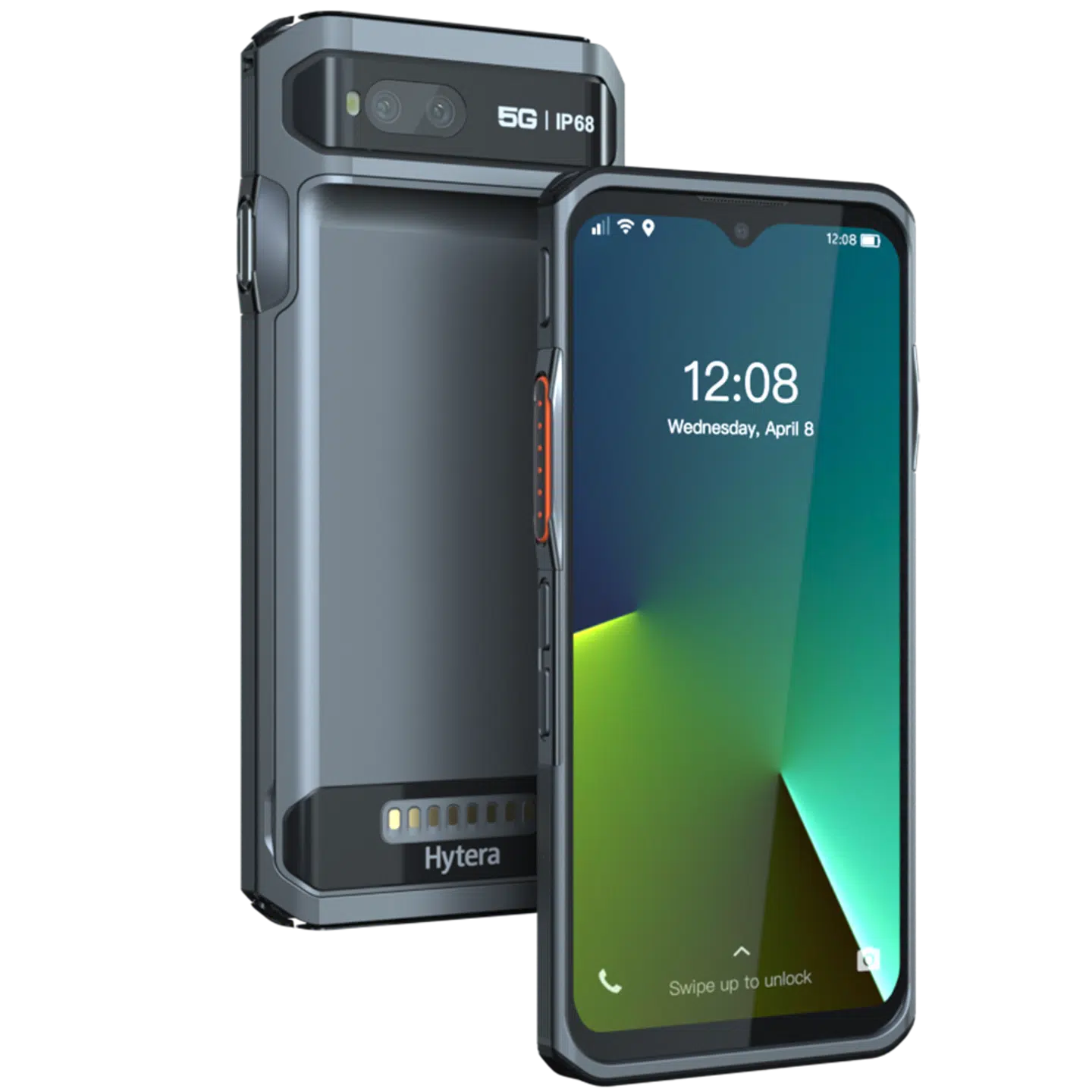

Push-to-Talk over Cellular Handheld Smart Device
The Hytera PNC560S is a Push-to-Talk over Cellular (PoC) radio and handheld smart device designed for nationwide business operations and remote workforce communications. The PNC560S combines the advantages of a compact mobile computer with the ruggedness, enhanced audio quality, and nationwide Push-to-Talk group communications of a professional PoC device. The PNC560S provides a cost-effective solution for unified PoC communications.
- Nationwide calling with 4G/LTE and 5G cellular networks
- Powerful Handheld Smart Device and Push-to-Talk Radio
- Industry-leading Audio Quality with AI-Based Digital Noise Suppression
- Rugged and Purpose Built for Professional Communications
- Runs Android Business Apps
The PNC560S enables Push-to-Talk over Cellular communications using existing 4G/LTE and 5G Mobile Network Operator infrastructure and Wi-Fi networks. The PNC560S is supported on the HORIZON and Hytera HALO Nationwide PoC subscription platforms, and on the HORIZON Dispatch and Hytera HALO Dispatch web-based group communications and fleet tracking applications.
STANDARD PACKAGE INCLUDES:
- Li-Ion Polymer Battery (BP4901)
- SIM Card
- Power Adapter (PS3007)
- USB Charging Cable (PC158)
- Tempered Glass Screen Protector (POA200)
- 2 Year Warranty
NATIONWIDE COVERAGE
Nationwide mobile 4G/LTE and 5G cellular connectivity, and optional multi-carrier SIM supports three mobile carriers and switches over when a carrier’s signal is no longer present
BUILT-IN WI-FI
Built-in 2.4GHz and 5GHz Wi-Fi supports in-building communications with seamless switching to LTE networks when outside Wi-Fi range.
INDUSTRY-LEADING AUDIO QUALITY
AI-based digital noise cancellation and high-volume speakers for excellent voice quality in loud environments. Minimum call volume can be enabled in the platform for all users to prevent muting audio and missing calls. Group calls can be built on the fly from contacts on the screen interface.
FLEXIBLE GROUP AND INDIVIDUAL CALLING
Enables instant half-duplex group calling (one caller speaks at a time) or full duplex individual calling (both callers speak any time). Supports cross-enterprise group calls to any other company with HORIZON PoC service. Zones can be used to organize multiple call groups through the screen interface.
6.3 INCH TOUCHSCREEN DISPLAY
Large screen enables multiple simultaneous operations, provides clear display in bright sunlight, and supports wet hand and glove touch interaction.
MULTIMEDIA AND TEXT CAPABILITIES
Supports sharing high-resolution images and video with HORIZON Dispatch and other PoC devices. Send, receive, and view text messages between dispatcher and other Hytera PoC devices. Supports recording and sending audio messages.
THREE HIGH-DEFINITION CAMERAS
Three separate high resolution cameras, including a screen-facing, wide-angle camera, and two rear-facing cameras with telephoto and wide-angle lenses.
LONG-LIFE BATTERY
Powerful 5,040mAh Lithium-Ion Polymer battery delivers up to 15 hours of continuous operation and supports quick charging by desktop charger and USB.
DUAL SIM
Dual SIM cards provide flexibility for two network data plans.
RUGGED AND DURABLE
Compliant with MIL-STD-810-G for shock and vibration, and IP68 rated for complete water and dust resistance.
ANDROID 12 OPERATING SYSTEM
Supports the latest Android OS business apps for inventory management, security, and unified communications.
SECURE COMMUNICATIONS
Supports AES128/256, ARC4, SM4, and Quantum encryption algorithms for secure and private communications.
POWERFUL DEVICE ENGINE
QualComm 8-core platform for smooth multi-task operations.
GPS POSITIONING
Enables real-time location tracking with the HORIZON Dispatch application.
| 5G |
N1/N2/N3/N5/N20/N28/N41/N66/N71/N78 |
| LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 |
| LTE-TDD |
B38/B39/B40/B41/B2/B43/B48 |
| WCDMA |
B2/B4/B5/B8 |
| GSM |
850/900/1800/1900 |
| Wi-Fi |
2.4GHz/5GHz 802.11b/g/n/ac |
| Bluetooth |
BT 5.0 |
| Positioning System |
GPS/Galileo/BDS/A-GPS |
| Audio Formats |
MP3, eAAC, G.711, Windows Media Audio 9/10/Pro, AMR-NB, AMR-WB |
| Image Formats |
JPG, GIF, BMP, PNG, WebP |
| Video Formats |
1080p@30fps>, MPEG-4, 3GP, P0, H.264, VP9, BP/MP/HP/ASP, DivX 4x/5x/6x |
Transceiver
| Audio Power Output |
3W rated with two speakers |
| Microphone |
Microphone with AI-based noise suppression |
Environmental
| Operating Temperature |
-4°F to +140°F (-20°C to +60°C) |
| Storage Temperature |
-22°F to +158°F (-30°C to +70°C) |
| ESD |
IEC 61000-4-2 (Level 4) 8kV Contact, 12kV Air |
| Dust and Water Ingress |
IP68 Standard, Full submersion at 5 feet for 30 minutes |
| Humidity |
Per MIL-STD-810 C/D/E/F/G Standard |
| Shock and Vibration |
Per MIL-STD-810 C/D/E/F/G Standard Drop Proof to 5 Feet |
| 3GPP |
MCX Release 15, Standard: 400,000 presses |
Certications
| Environmental |
RoHS/REACH |
| Certication |
FCC, CE, IC, GMS |
General
| Battery |
5,040mAh (Li-Ion Polymer) |
| Battery Life |
Up to 15 hours continuous use |
| Weight |
9.5oz (270g) |
| Dimensions (H x W x D) |
6 9/16” x 3 1/32” x 1/2” (167 x 77 x 13mm) |
| Operating System |
Android 12 |
| Memory |
4GB RAM + 32GB ROM |
| Card Slots |
2X Nano SIM, or 1X Nano SIM and 1X MicroSD 128Gb |
| Display |
6.3” Gorilla Glass, FHD+, 2340x1080, Supports Multi-Touch, Wet, and Glove Touch |
| Camera |
8MP Front Facing, 8MP Rear Facing Telephoto, and 48MP (via software algorithm) Wide Angle Rear Facing |
| Flash / Flashlight |
Supported |

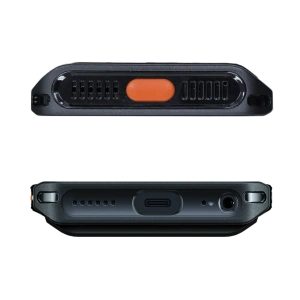

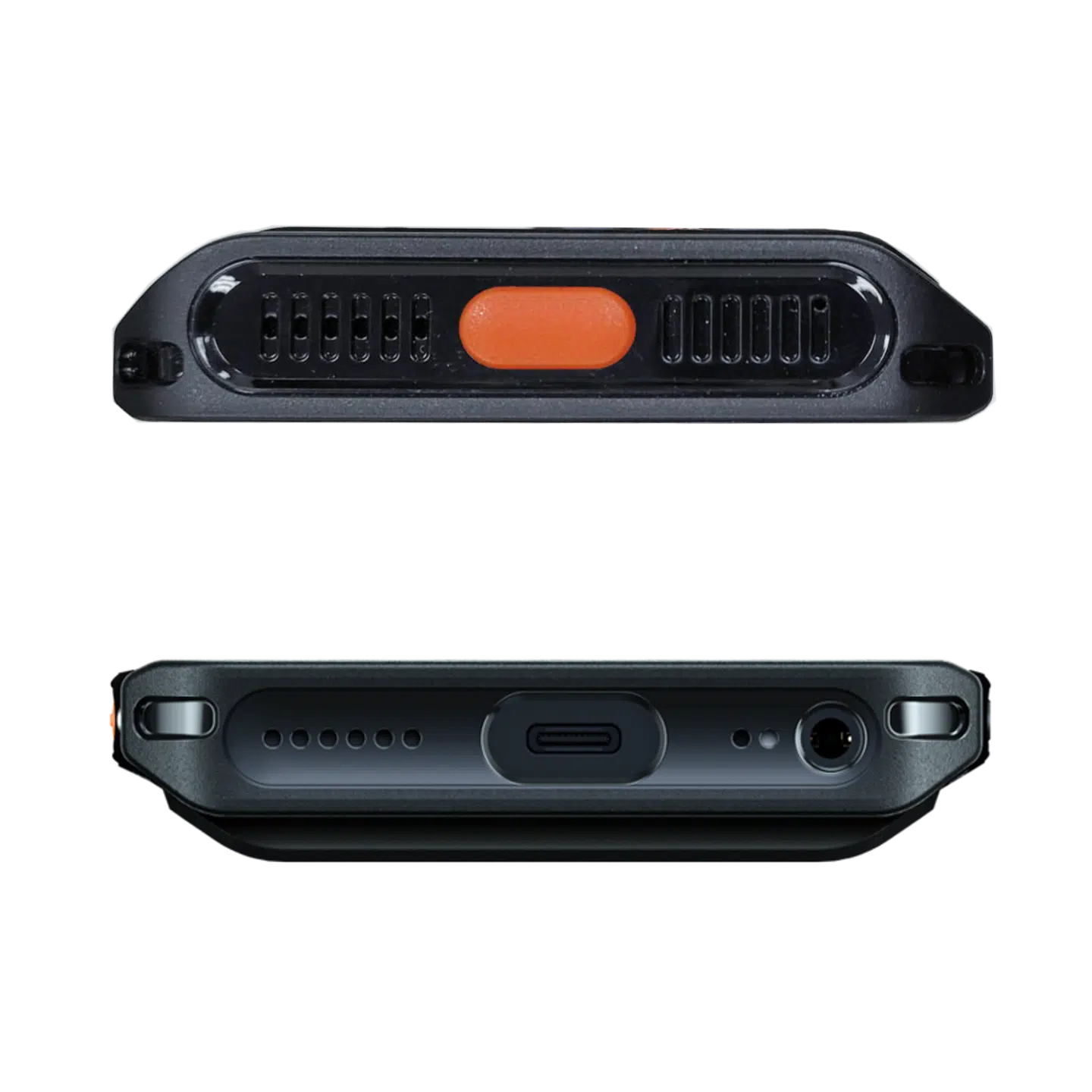

| Ports |
USB Type C Charger Interface, 3.5mm Audio Interface |

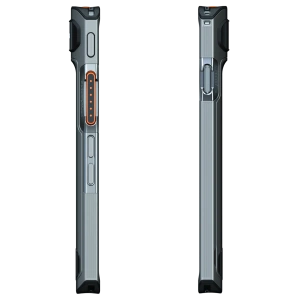

| Physical Interface Buttons |
1x Push-to-Talk, 2x Volume (+/-), 1x Programmable Button, 1x Emergency Button, 1x Power with Fingerprint Recognition |
| Sensors |
Fingerprint, Acceleration, Gravity, Gyroscope, Geomagnetic, Light |
Hytera PNC550 requires airtime service on the LTE system
