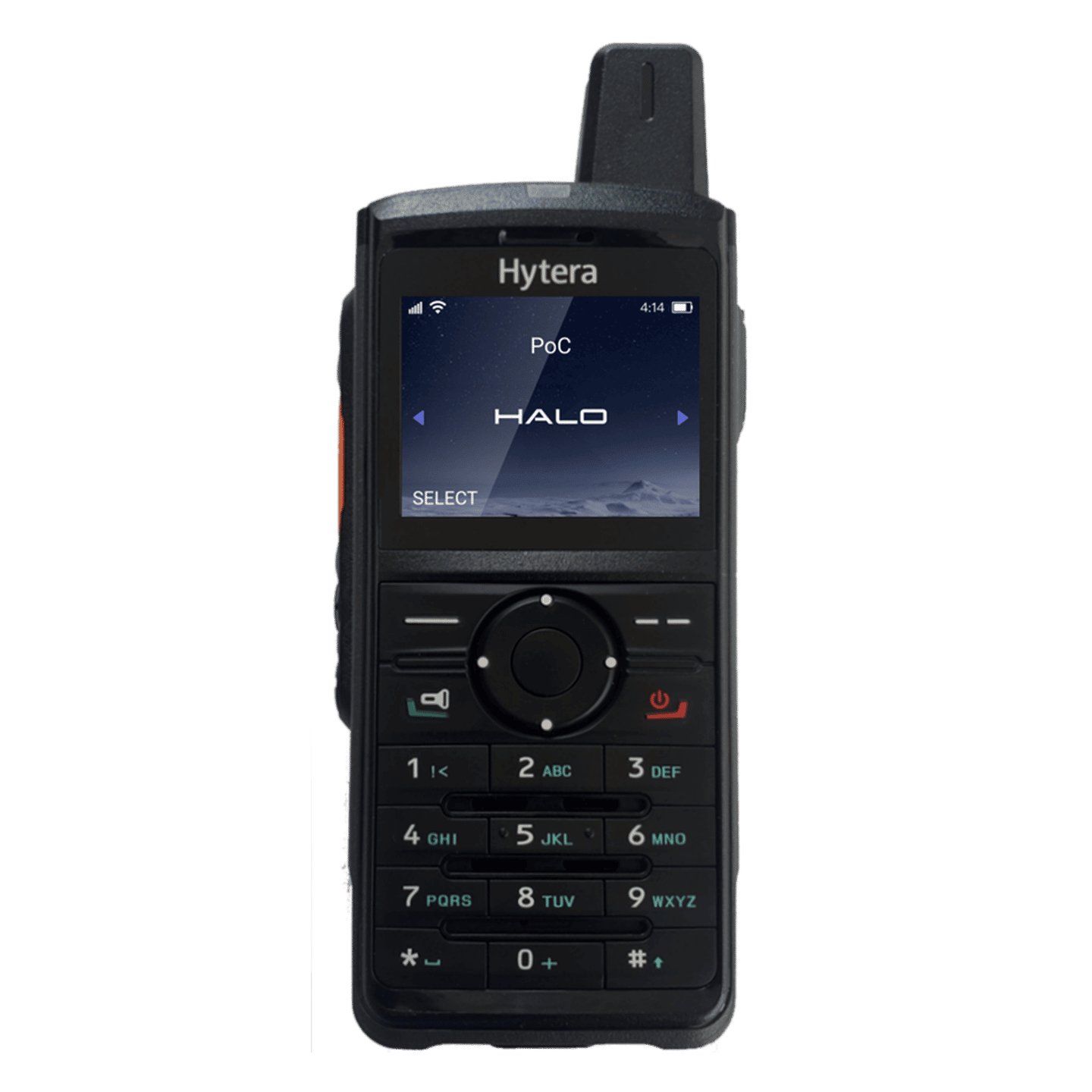

The Hytera Halo PNC380S is a compact, rugged, and easy-to-operate Push-to-Talk over Cellular (PoC) and Wi-Fi device. The PNC380S supports nationwide voice and video group calling, dispatching, and GPS location tracking. It is AT&T Network Ready and PTCRB certified and features an optional dash-mount car kit.
Halo OnSite+ - For single-site or multi-site use, HALO OnSite connects to specific Wi-Fi systems so you can limit service to only where you want it.
Halo Connect - HALO Connect allows for LMR, DMR, and PoC networks to be called, dispatched, and tracked all from a single web application.
Halo Dispatch - All Hytera PoC devices support HALO dispatch, a web-based communication and location dispatching application.
Hytera HALO Nationwide offers a state-of-the-art Push-to-Talk Over Cellular (PoC) radio network that utilizes America's reliable cellular infrastructure. Say goodbye to coverage gaps and enjoy seamless communication across the entire nation.
STANDARD PACKAGE INCLUDES:
- Antenna
- Li-Ion Battery
- SIM Card
- Owner's Manual
- Belt Clip
- 2 Year Warranty
AT&T APPROVED NATIONWIDE COVERAGE
PTCRB certified, AT&T approved Network Ready, and fully approved and tested by the leading US carrier for reliable nationwide connectivity
INSTANT GROUP AND INDIVIDUAL CALLING
The PNC380s Push-to-Talk button initiates instant half-duplex group calling or full duplex individual calling. Supports instant group calling from the HALO Dispatch web-based communications and location tracking application
HIGH-DEFINITION LIVE VIDEO

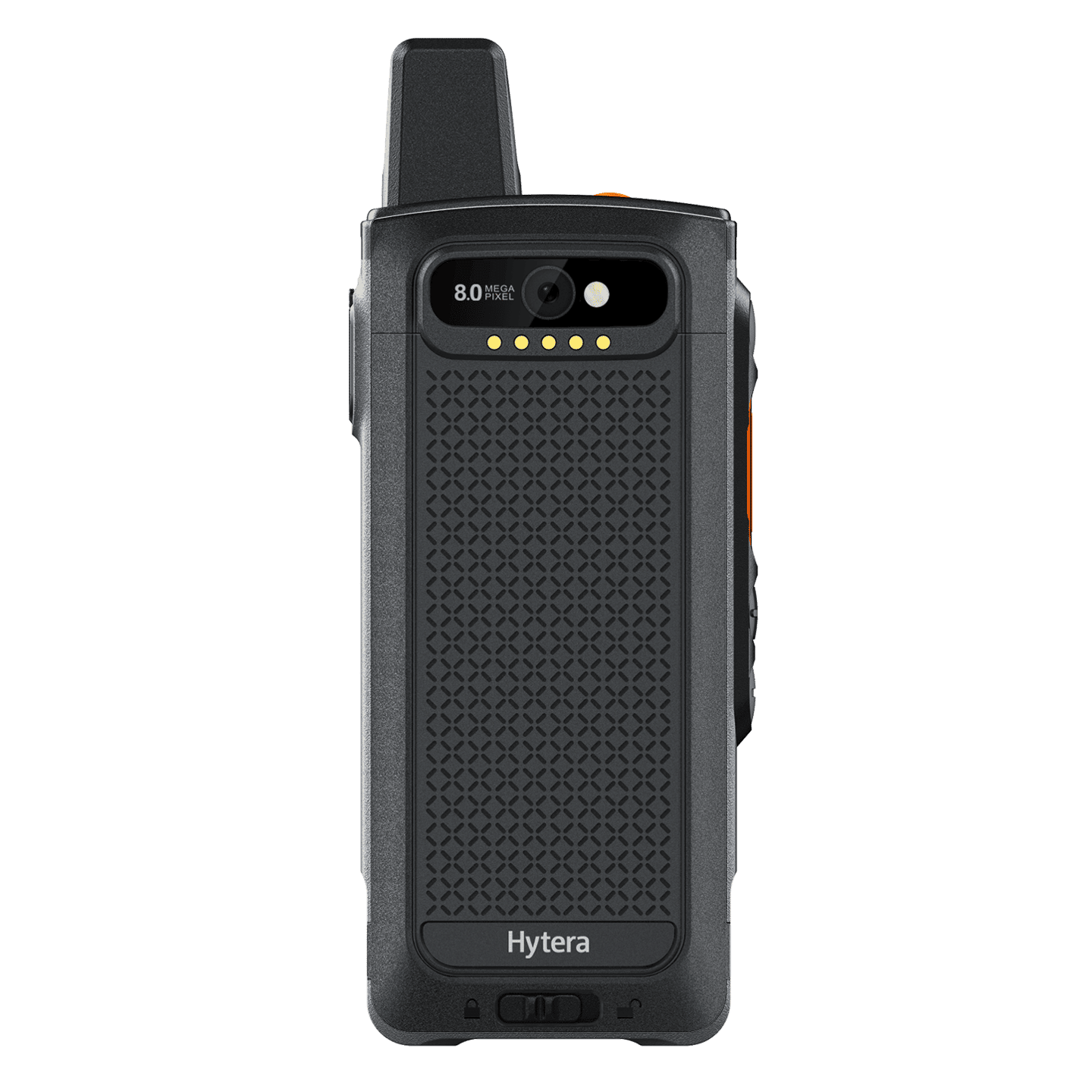

Equipped with an 8-megapixel rear camera, the PNC380S enables real-time video streaming. Video communications improve situational awareness, and facilitate problem solving and decision making
BUILT-IN WI-FI
Built-in Wi-Fi supports in-building communications with seamless switching to LTE networks when outside the Wi-Fi range
GPS POSITIONING
Built-in GPS enables real-time tracking and positioning for the Hytera HALO Dispatch application
HIGH-QUALITY AUDIO
Digital noise suppression and high-volume speakers for excellent voice quality in loud environments. Provides high-quality digital audio performance for individual calls, group calls, and emergency calls
ERGONOMIC DESIGN
Compact and ergonomic design with easy-access buttons enables comfortable one-hand operation. Reversible belt clip for carrying with the screen facing in or out
CAR KIT
Dash-mount car kit available for safe in-vehicle calling. Features optional external speaker, palm microphone, visor microphone, and remote Bluetooth Push-to-Talk
BUILT-IN BLUETOOTH
Built-in Bluetooth enables connectivity to earpieces, Push-to-Talk devices, and other wireless accessories
TFT LCD DISPLAY
TFT LCD display provides high-resolution visibility even in bright daylight. Supports an easy-to-use GUI menu system with clean and simple navigation
RELIABLE AND DURABLE
IP67 rated for protection from dust and water ingress up to 1 meter for 30 minutes. Compliant with MIL-STD-810-G for shock and vibration
LONG-LIFE BATTERY
A powerful 4,000mAh Lithium-Ion Polymer battery delivers up to 24 hours of operation
LED FLASHLIGHT
Bright LED illumination at the touch of a button
TEXT MESSAGING
Send, receive, and view text messages between dispatchers and other Hytera PoC devices
SAFETY FEATURES
The one-touch Emergency button enables one-touch emergency calls to a dispatcher and sends alarms to other radios
STUN/REVIVE
A dispatcher can remotely stun (disable) or revive (return to service) if the radio is lost or stolen
LTE
FDD:B2/B4/B5/B7/B12/B13/B25/B26
WCDMA
B1/B2/B4/B5/B8
GSM
850/1900 MHz
WLAN
2.4GHz and 5GHz, 802.11 b/g/n
Bluetooth
BT 4.2
Positioning System
GPS/A-GPS
Dimensions (H x W x D)
5 27/32” x 2 3/8” x1 1/8” (148 x 60 x 28mm)
Weight (with battery)
208g (with battery)
Memory
RAM: 1GB ROM: 8GB
Extended: Micro SD/TF card, up to 32GB
SIM Card
Nano SIM 12.3mm x 8.8mm
Display
2.0'' 320×240
TFT/Non-touch
Ports
Micro USB 2.0
3.5mm Audio Jack
Dock Charger Interface
CAR KIT Connection Interface
Video and Images
Video: 480p @ 30fps for streaming, 720p @ 30fps for recording
Images: 8MP
Operating Voltage
3.85V (Rated)
Battery
4000mAh (Li-ion)
Battery Life
≥24h (5-5-90 working cycle)
Transceiver
Audio Power Output
1W (Rated) (Max: 2W)
Mic
Mic with Digital noise suppression
Environmental
Dust and Water Proof
IP67 Standard
Shock & Vibration
MIL-STD-810 G Standard
Drop Resistance
1.2m
ESD
IEC 61000-4-2
±8 kV (Contact)
±12 kV (Air)
Operation Temperature
-4F to +140F (-20C to +60C)
Storage Temperature
-22F to +158F (-30C to +70C)
Hytera PNC380S requires airtime service on the LTE system
