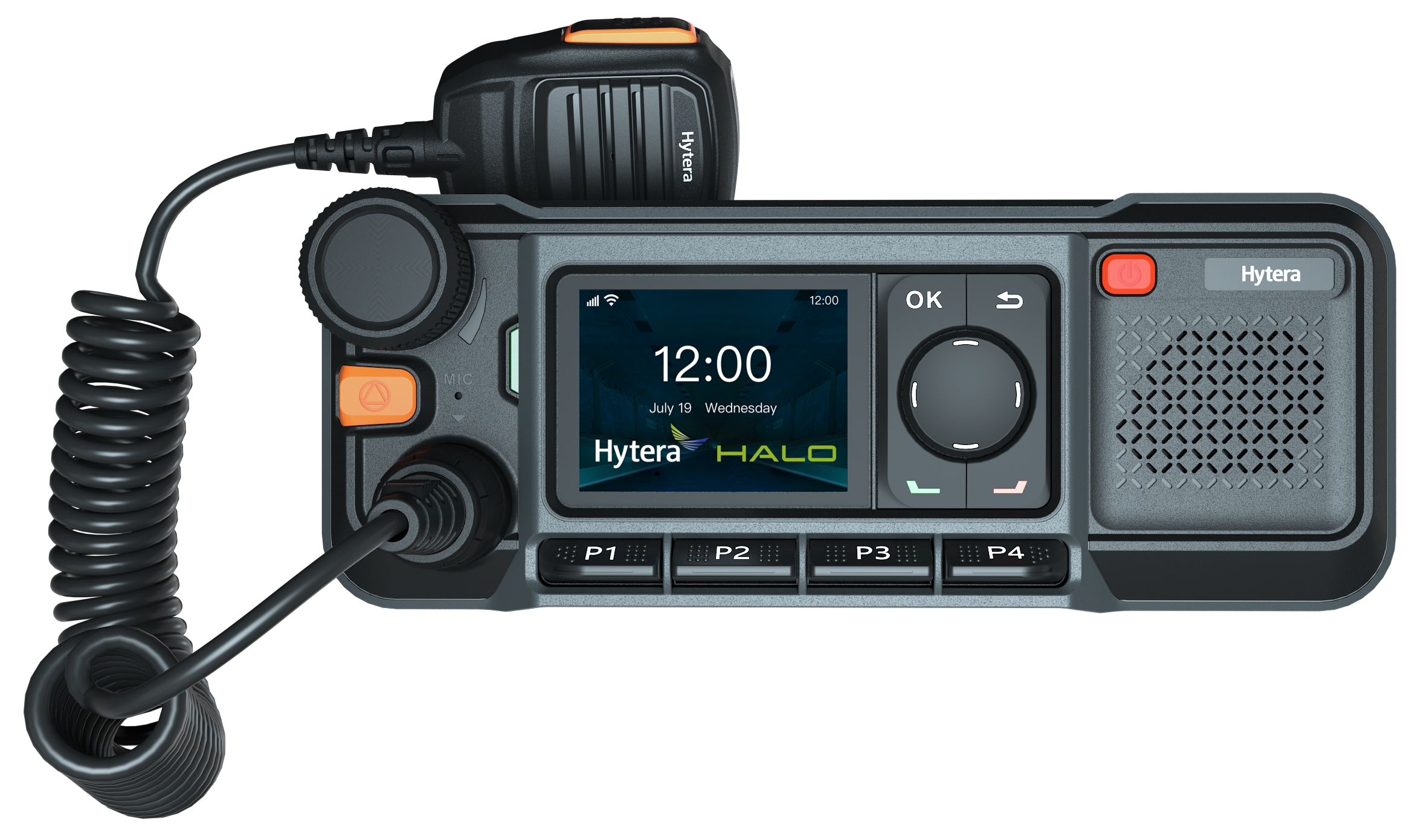

The Hytera Halo MNC360 Push-to-Talk over Cellular (PoC) mobile radio is a professional-grade communications device that provides clear push-to-talk communication, instant group calling, and location tracking for reliable and efficient fleet dispatching.
Unlike cell phones, tablets, and handheld devices, the MNC360 is a legal and DOT-compliant device for safe communications while driving.
• Nationwide Coverage with 4G/LTE Networks
• Industry Leading Voice Quality with Digital Noise Suppression
• Supports Instant Group and Individual Calling
• Compact and Rugged Radios that are Easy to Use
• GPS Location Tracking for the Web-based Dispatching App
Halo OnSite+ - For single-site or multi-site use, HALO OnSite connects to specific Wi-Fi systems so you can limit service to only where you want it.
Halo Connect - HALO Connect allows for LMR, DMR, and PoC networks to be called, dispatched, and tracked all from a single web application.
Halo Dispatch - All Hytera PoC devices support HALO dispatch, a web-based communication and location dispatching application.
Hytera HALO Nationwide offers a state-of-the-art Push-to-Talk Over Cellular (PoC) radio network that utilizes America's reliable cellular infrastructure. Say goodbye to coverage gaps and enjoy seamless communication across the entire nation.
STANDARD PACKAGE INCLUDES:
• Antenna
• Li-Ion Battery
• SIM Card
• Owner's Manual
• Belt Clip
• 2 Year Warranty
NATIONWIDE COVERAGE
A Cellular SIM card enables mobile network access for nationwide coverage with cellular 4G/LTE connectivity, and dual LTE paddle antennas improve RX sensitivity by 3dB for excellent reception in weak signal areas.
INSTANT GROUP AND INDIVIDUAL CALLING
Push-to-Talk button on the handheld microphone initiates voice calls to groups or individuals, and the HALO Dispatch web-based communications and location tracking application supports instant group calling to the MNC360 and other PoC devices.
INDUSTRY-LEADING AUDIO QUALITY

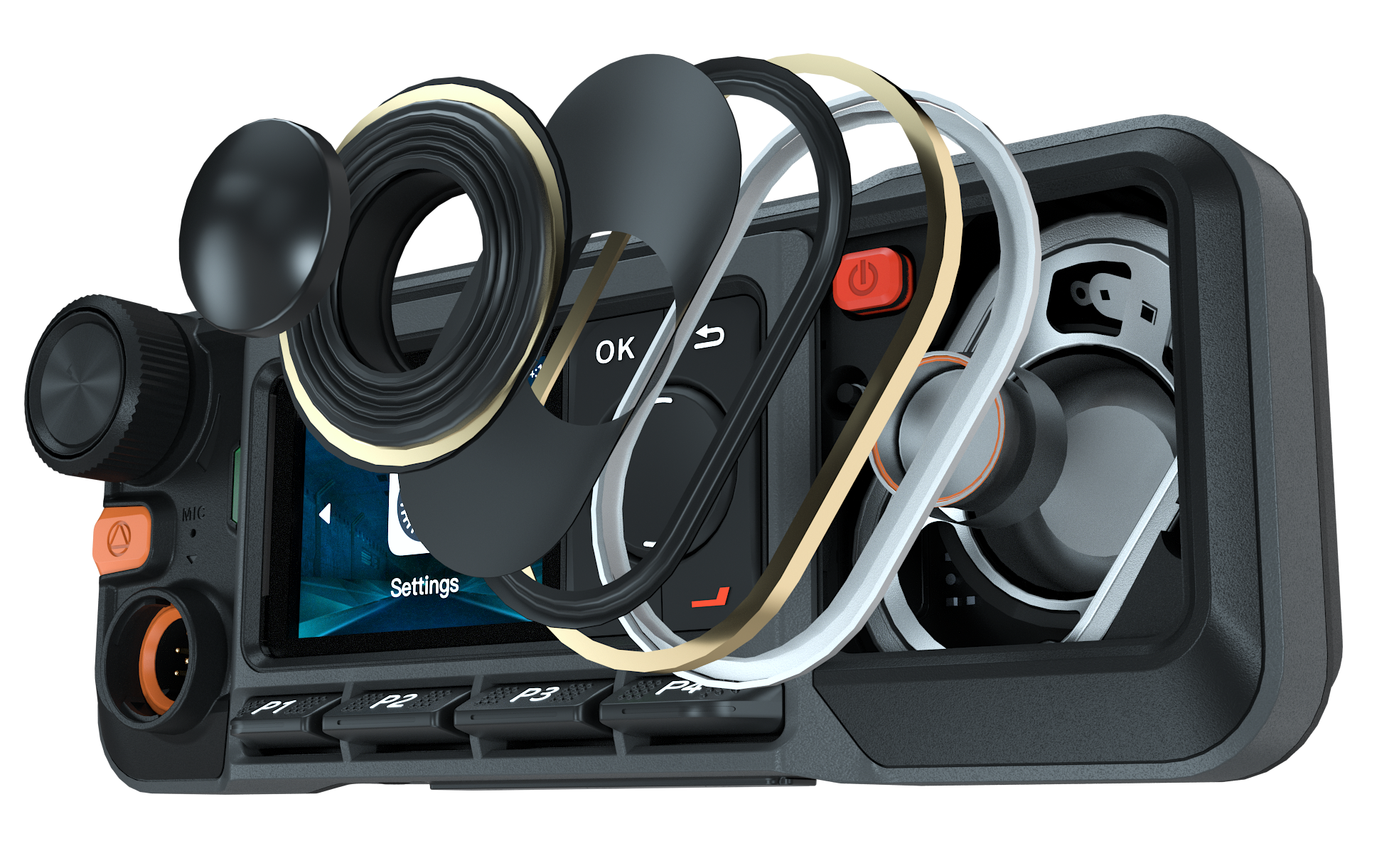

The MNC360 features digital noise cancellation technology, distortion and howling suppression, and an exclusive patented acoustic speaker cavity and forward-facing 4-Watt high-volume speaker to deliver excellent voice quality in loud environments.
GPS POSITIONING
A highly accurate external GPS antenna enables speed monitoring and real-time location tracking with breadcrumbs and geofencing with the Hytera HALO Dispatch application.
COMPACT AND EASY TO INSTALL

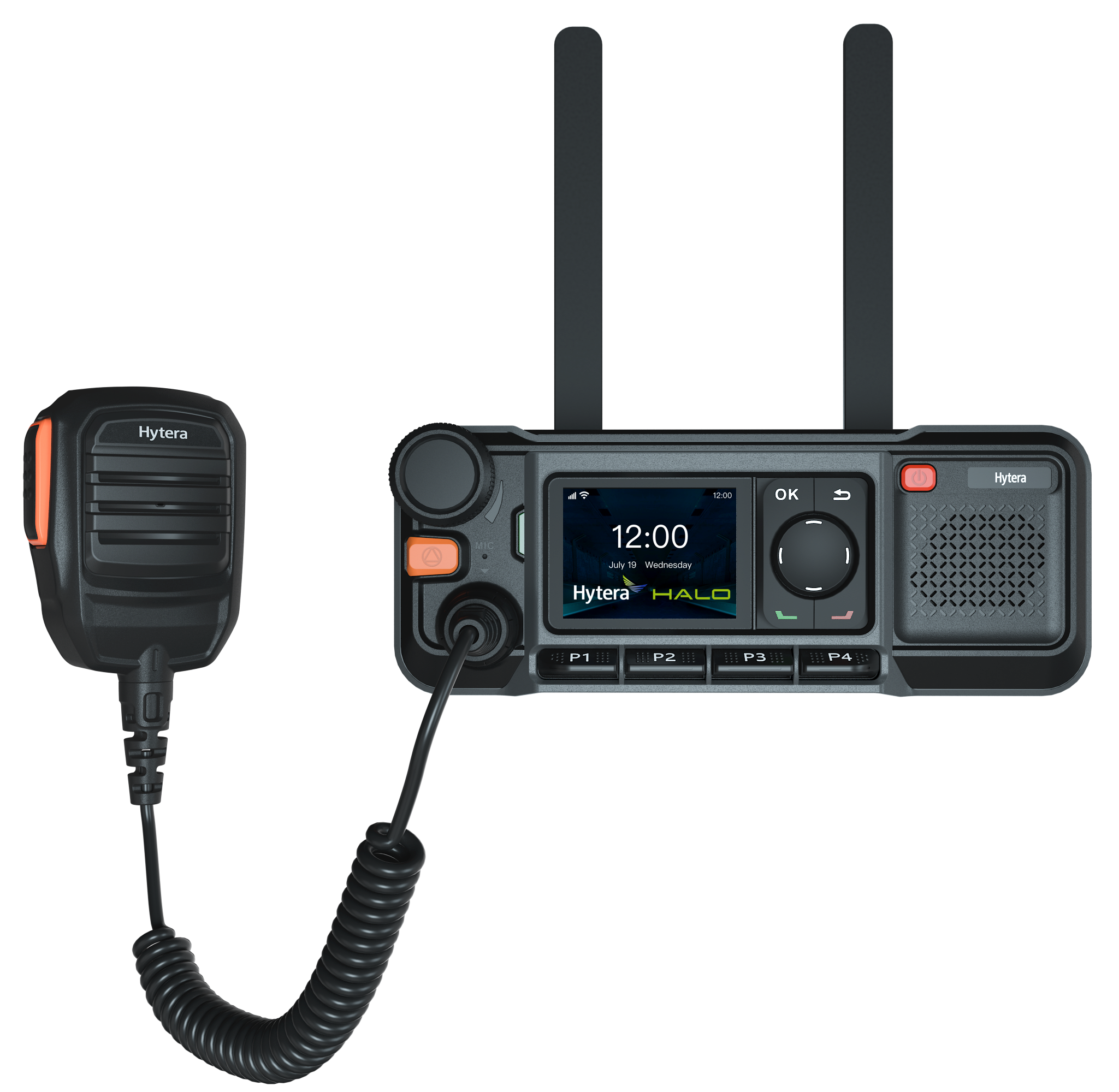

Weighing only 10.6 ounces, the MNC360 is compact for flexible installations, and a rotating mounting bracket enables attaching the MNC360 on top of the dashboard or on a vertical surface in the vehicle. The MNC360 features highly sensitive, dual LTE antennas to reduce the need to install an external antenna (depending on where the MNC360 is installed inside the vehicle).
DESIGNED FOR SAFETY
Eyes stay on the road with raised tactile buttons, piano-style keys, and a lightweight handheld microphone for safe and simple push-to-call operation. The MNC360 features speeding and driver fatigue notifications, and an emergency call button for instant one-touch emergency calls to dispatchers and other PoC devices.
CLEAR AND BRIGHT DISPLAY
The LCD display screen is easily visible even in bright sunlight.
CELLULAR OPERATOR SMART SWITCH
Supports two SIM cards and smart switching between operator networks to access the strongest signal strength for reliable communications.
ANDROID OPERATING SYSTEM
The MNC360 is powered by the Android mobile platform.
BUILT-IN WI-FI
Built-in Wi-Fi for flexible network access and using the MNC380 as a dispatch console.
FLEXIBLE INTEGRATION
With the standard API and SDK, the MNC360 communications capabilities can be integrated into mobile fleet management and telematics applications.
RICH WITH ACCESSORIES
The MNC360 features a 3.5mm audio jack for wired earpiece accessories, a Micro USB 2.0 port for connecting and powering a variety of external devices, built-in Bluetooth for hands-free microphones and other wireless accessories, and a 2-pin port for an external loudspeaker.
Technical Specifications
General
Weight
10.6oz (300g)
Dimensions
(H x W x D) 6 5/8” x 2 5/8” x 1 1/2” (170 x 66 x 39mm)
Display
2” LCD 320x240
Operating System
Android 7.1
RAM Capacity
1 GB
ROM Capacity
8 GB
Input Voltage
9-25V DC
Speaker
4W
Operating Temperature
-22°F to +167°F (-30°C to +75°C)
Installed App
Hytera HALO
Port Interfaces

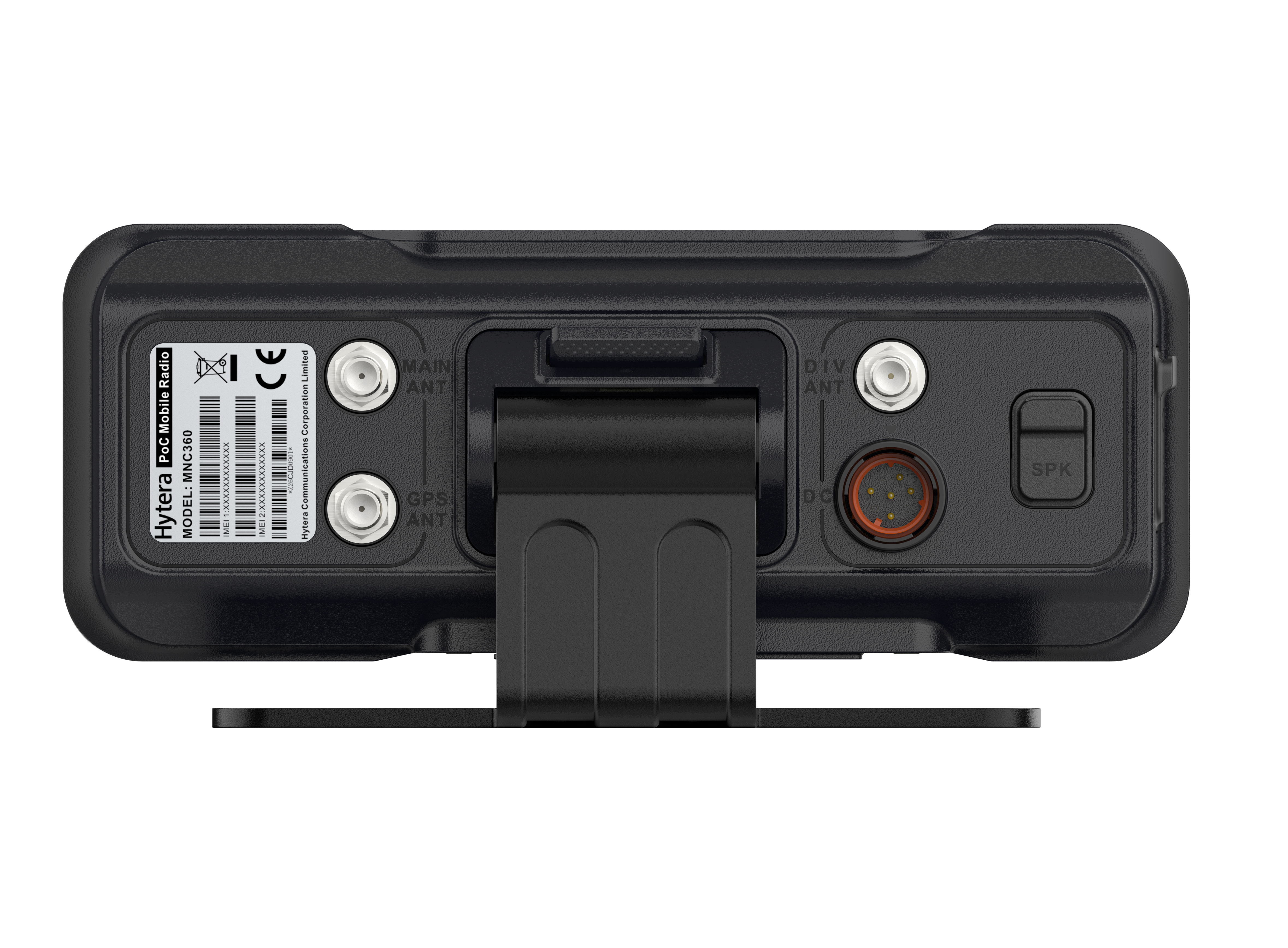

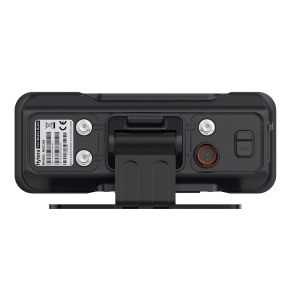

Two LTE antenna ports, 2-pin external speaker port, GPS antenna port, MicroUSB 2.0 connector, 3.5mm audio accessory port, secure10-pin aviation port for handheld mic, power connector
Card Slots
Two Micro-SIM slots, TF Card slot (up to 128 GB)
Environmental
Operating Temperature
-4° to +140° F (-20° to +60° C)
Storage Temperature
-40° to +185° F (-40° to +85° C)
ESD
IEC 61000-4-2, (ESD) ± 12 kV (air); ± 8 kV (contact)
IP Rating
IP54 for water and dust resistance
Standards and Frequencies
LTE Frequency Bands
FDD-LTE: B1/B2/B3/B4/B5/B7/B8/B12/B13/B17/B20/B26/B28 - TDD-LTE: B38/B39/B40/B41 (2496–2690 MHz) GSM: 850/900/1800/1900 - WCDMA B1/B2/B3/B4/B5/B8
Wi-Fi
2.4GHz 802.11b/g/n
Bluetooth
BT 4.2
Positioning System
GPS (A-GPS)/BDS
Certifications
FCC/CE/IC
